TWO-AXIS Gyro Stabilised Mini-gimbal
OTUS-U170
OTUS-U170 is one of the smallest and lightest high-performance multi-sensor systems on the market with capacity to fit up to three capable sensors. It delivers market-leading stabilisation due to purpose-built high bandwidth torque
motors. It is tested against MIL STD-810G and RTCA DO-160G to ensure reliable operation on a wide range of platforms.
OTUS-U170 is the best choice for airborne and ground-based applications when low weight is critical, but a capable multi-sensor solution is required.
Tri-axial micro-mechanical (MEMS) IMU and an optional laser range finder provides for advanced built-in features like geolocation and geo positioning with good accuracy. Built-in is also a basic singletarget video tracker
| Axes | 2 |
| Stabilisation | 75 µrad |
| IP Class | IP55 |
| Test Standard | RTCA DO-160G (MIL STD-810G) |
| Weight | <3 kg |
| Power Requirements | 22-30 Vdc, 40W (typical) |
| EO Camera | Full HD, FOV 2.3 – 64° |

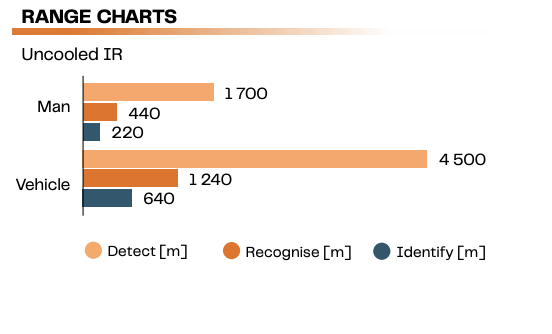

| IR Camera | Uncooled LWIR ZOOM, FOV 10.4 – 33° or uncooled LWIR, FOV 18° |
| Control Interface | Ethernet, RS485 or RS-232 |
| Video Interface | Component, CVBS (PAL or NTSC), HD-SDI (option), Ethernet H.264 (option) |
| LRF Range | 3.3 km |
